ZGXH-2R-12K (TY) Signal SPD

Mã sản phẩm : 1490071843

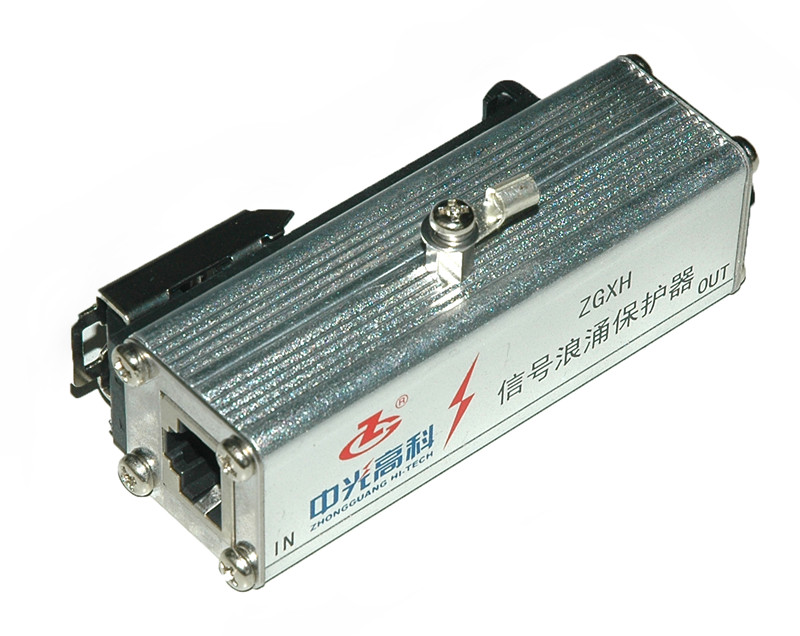

The ZGXH-2R-12K (TY) Signal SPD is used for protection of the interface circuit of high speed Ethernet. It is connected in the input end of protected equipment. When the transmission line is struck by lightning, the lightning current is discharged to the earth through the lightning branches, and the lightning overvoltage is clamped within a proper range, thus the security of equipment being ensured.


Hỗ trợ Tư vấn+84-979933470

Features The SPD is characterized by the high transmission rate, fast response speed, low protection level, etc., greatly improving the Ethernet’s ability to withstand overvoltage and lightning impulses. Technical Data

Technical Parameters

Circuit Diagram



Configuration

Dimensions: 77mm×35mm×35mm

  • Standards Complied

    GB/T 18802.21-2004    Low-voltage surge protective devices – Part 21: Surge protective devices connected to telecommunications and signaling networks – Performance requirements and testing methods

    YD/T 1542-2006        Technical requirements and testing methods for surge protective devices of signaling networks

    Q/75875187-9•3—2011  Signal SPD

    Installation, Usage And Maintenance

    Installation
    1 Before connecting the SPD into the system, first check the grounding resistance of grounding grid, which should meet relevant requirements of specifications.
    2 Connect the signal line of system to the input end of SPD, and output to protected equipment; ensure reliable connections, and do not reverse them.
    3 Connect the grounding terminal of SPD with the nearby bus of protected ground, with the ground connection as short as possible.

    Usage and Maintenance
    1 There are the IN and OUT markings on the enclosure of SPD, with the output end connected to protected equipment, and do not reverse them; otherwise the SPD will be damaged, and equipment cannot be effectively protected.
    2 Users cannot disassemble the fastening pieces of SPD at random, in order to avoid damage.
    3 If you find that the system does not work properly with the SPD, and can work properly without the SPD, it indicates that there is a problem with the choice of SPD, which should be replaced.
