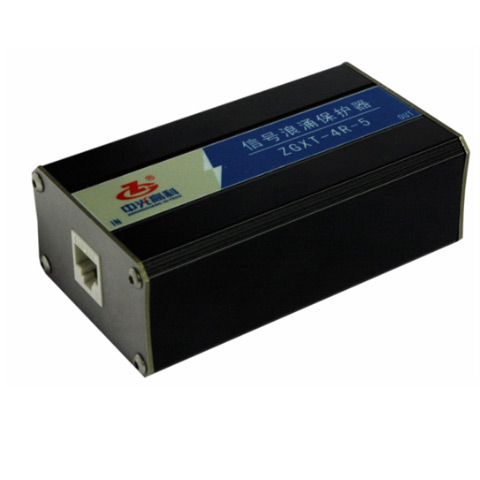

ZGXT-4R-5 Signal SPD

Mã sản phẩm :

The ZGXT-4R-5 Signal SPD is mainly used for protection of the interface circuit of Ethernet with POE, greatly improving the Ethernet’s ability to withstand overvoltage and lightning impulses

Giá bán: Kết nối với chúng tôi

Hỗ trợ Tư vấn: +84-979933470

Features High transmission rate, fast response speed, low protection level, etc. Technical Data

Technical Parameters

Circuit Diagram

Configuration
Dimensions: 102mm×60mm×36mm

Standards Complied
GB/T 18802.21-2004 Low-voltage surge protective devices – Part 21: Surge protective devices connected to telecommunications and signalling networks – Performance requirements and testing methods

Q/75875187-9.3—2011 Signal SPD
Installation, Usage And Maintenance
Installation
1 Before connecting the SPD into the system, first check the grounding resistance of grounding grid, which should meet relevant requirements of specifications.
Connect the signal line of system to the input end of SPD, and output to protected equipment; ensure reliable connections, and do not reverse them.
Connect the grounding terminal of SPD with the nearby bus of protected ground, with the ground connection as short as possible.

Usage and Maintenance
1 There are the IN and OUT markings on the enclosure of SPD, with the output end connected to protected equipment, and do not reverse them; otherwise the SPD will be damaged, and equipment cannot be effectively protected.
2 Users cannot disassemble the fastening pieces of SPD at random, in order to avoid damage.
3 If you find that the system does not work properly with the SPD, and can work properly without the SPD, it indicates that there is a problem with the choice of SPD, which should be replaced.
