G-Series

Product code : 1499401843

Policy-based 10 G Modular L2/L3/L4 Edge Switch 3-slot modular architecture supports high-density Gigabit Ethernet and 10GE I/O modules High-availability design with redundant power assures reliable network operations PoE and IPv4 & IPv6 routing support a variety of networks and devices Aligns network resource utilization with business goals and priorities 384 Gbps capacity and 214 Mpps line-rate switching and routing

Price: Contact Us

Counseling support: +84-979933470

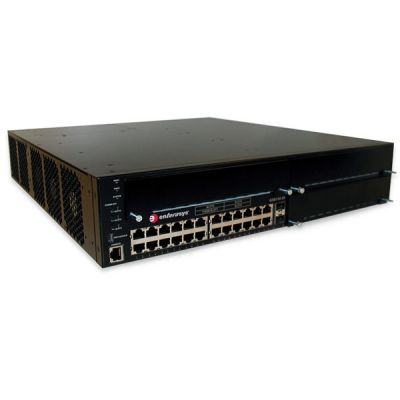

The Extreme Networks G3 is a Gigabit Ethernet switch with 3 expansion slots that support 24-port Gigabit Ethernet as well as 2-port and 4-port 10GE I/O modules. With its wire-rate switching and routing capabilities, including IPv6 routing, the G3 is well-suited for dynamic switching/routing environments that require high-density Gigabit Ethernet ports and high-capacity 10GE uplinks. Along with a switch capacity of 384 Gbps, the G3 provides 24 Ethernet ports (either fixed 10/100/1000Base-T or 1 Gbps SFPs). Two of the ports on the 10/100/1000 switches are combo ports, which can be accessed via either the 10/100/1000Base-T or 1 Gbps Small Form-Factor Pluggable (SFP) connectors.

In order to provide a reliable, high-availability network, the G3 offers field-replaceable redundant power supplies and supports Link Aggregation Groups (LAGs), OSPF Equal Cost Multipath and Virtual Router Redundancy Protocol (VRRP). Both the standard and Power over Ethernet (PoE) G3 models support redundant, integral power supplies, which can be configured to operate in either a load-sharing (redundant) or additive power configuration.

In conjunction with its non-blocking architecture, the G3’s robust Quality of Service (QoS) features enable strong support for converged multimedia networks, including Voice over IP (VoIP) and video, as well as all types of data-intensive applications. The G3’s highly customizable Layer 2/3/4 packet classification capabilities together with its intelligent queuing mechanisms ensure that mission-critical applications receive prioritized access to network resources.

Making use of Extreme Networks’ policy capabilities, a network administrator can define distinct roles or profiles that represent specific operational groups within an organization. Each defined role is granted individualized access to specific network services and applications (e.g., manager, employee, guest) and these access privileges remain associated with users as they move across both wired and wireless network access points. Users are authenticated via IEEE 802.1X, MAC address, or web authentication, and then assigned a predefined operational role ensuring that each user has access to appropriate information, thus aligning network resource utilization with business goals and priorities.

In order to sustain a secure, feature-rich and cost-effective network well into the future, the G3 includes a lifetime warranty.
