ZGDD100-10YM AC Outdoor Lightning Protection Box

Product code :

The ZGDD100-10YM AC outdoor lightning protection box is used for tertiary protection. It is applied in AC power distribution system, and connected between the AC power supply and the equipment in series. It can prevent the equipment from the impulse surge and the transient overvoltage caused by the outside environment (such as lightning, EMI, etc.) or by the system (such as switching effects of the system, startup or shutoff of the inductance and capacitance load, etc.).

Price: Contact Us

Counseling support: +84-979933470

ZGDD100-10YM AC Outdoor Lightning Protection Box

ZGDD100-10YM AC Outdoor Lightning Protection Box

General

Standards Complied

GB/T 2423.1 Environmental testing of electric and electronic products - Part 2: Test methods Test A: Low temperature

GB/T 2423.2 Environmental testing of electric and electronic products - Part 2: Test methods Test A: High temperature

GB/T 2423.3 Basic Environmental Test Procedures for Electrical and Electronic Products Test Ca: Constant Damp Heat Test Method

YD/T 1235.1 Technical requirements for surge protective devices connected to low-voltage distribution systems of telecommunication stations/sites

YD/T 1235.2 Testing methods for surge protective devices connected to low-voltage distribution systems of telecommunication stations/sites

GB 4208 Degree of protection (IP code)

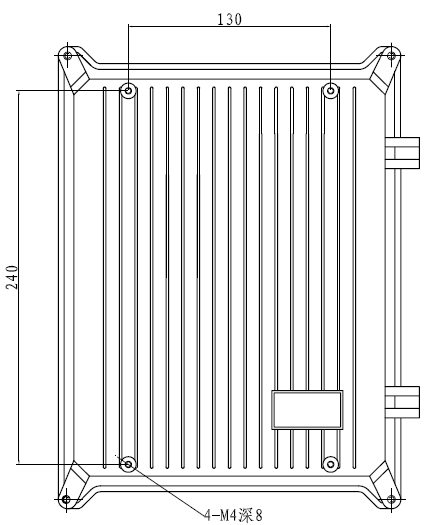

Technical Parameters

Model	ZGDD100-10YM
Norminal operating voltage U_O	220V AC
Max. continuous operating voltage U_c	385V AC
Nominal discharge current I_n(8/20μs)	40kA
Max. discharge current I_max(8/20μs)	100kA
Voltage protection level U_p	≤1.5kV
Rate load current I_L	10A
Load side impulse capacity (8/20μs)	20kA
Leakage current	≤50μA
Connection mode	In series
Protection mode	L-PE,N-PE,L-N
