The ZGP1-C10-G6-FK1-H Power Distribution Unit (PDU)

Product code :

The Power Distribution Unit (PDU), due to its industrial-grade power distribution process design, delivers high levels of safety and reliability. Common and intelligent PDUs are widely used based on the importance of equipment distribution and power energy management in various data room systems.

Price: Contact Us

Counseling support: +84-979933470

The ZGP1-C10-G6-FK1-H Power Distribution Unit (PDU)

Overview
The Power Distribution Unit (PDU), due to its industrial-grade power distribution process design, delivers high levels of safety and reliability. Common and intelligent PDUs are widely used based on the importance of equipment distribution and power energy management in various data room systems.
The Zhongguang ZGP1 series PDU is mainly used for AC power distribution (including TT, TN, IT power distribution system) of system equipment in the cabinet of the equipment room. According to the power distribution power of the system equipment and the power distribution interface, the corresponding input and output interfaces are configured.

Technical indicators

Model	ZGP1-C10-G6-FK1-H
Number of input channels	Single input
Rated input voltage	200 V~240 V
Input power frequency	50/60 Hz
Maximum input current	10 A
Input plug	GB 1002 single-phase two-pole with grounding plug 10A (line length 1.5m)
Number of output units	6
Output socket system	Universal socket
Lightning protection	Nominal discharge current In: 5 kA Voltage protection level Up: 1.8 kV Full protection mode (green light on: normal; light off: no power or abnormal indicator)

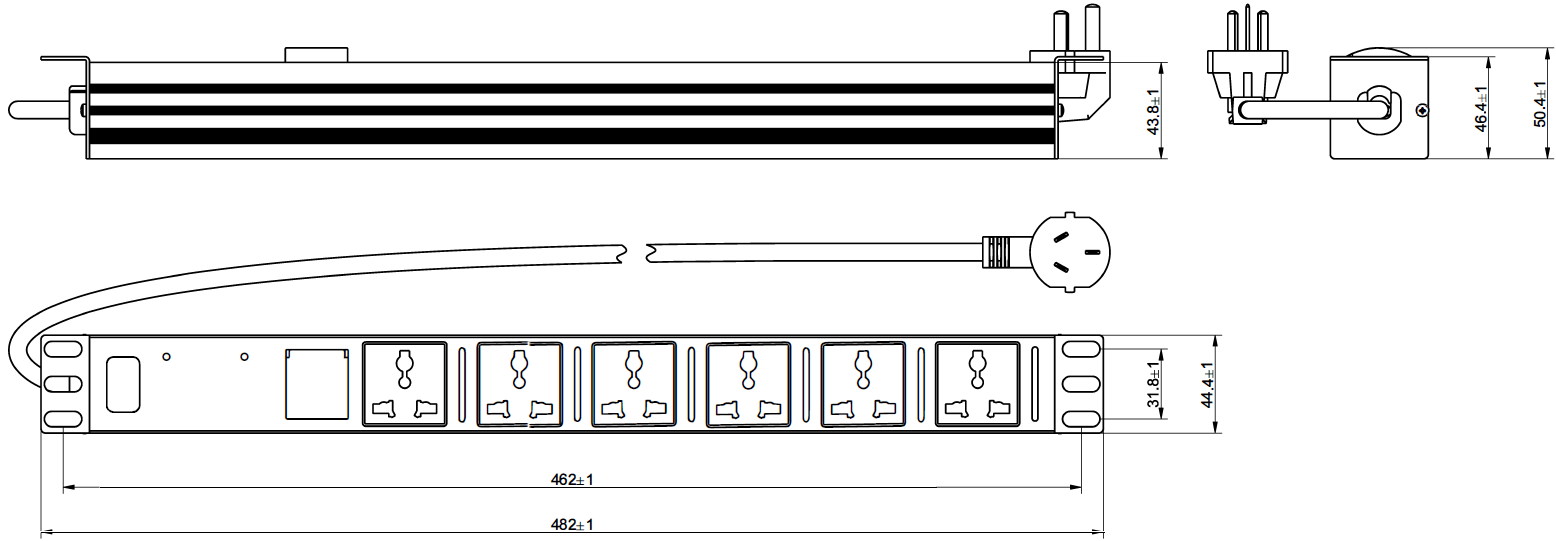

Dimensions LWH	482 mm44.4 mm50.4 mm
Installation method	Horizontal installation
Housing material	Aluminum profile metal casing
Panel color	Black
Socket module	Material: PC/ABS Flame retardant rating: meets UL 94 V-0 rating
Environmental requirements	RoHS
