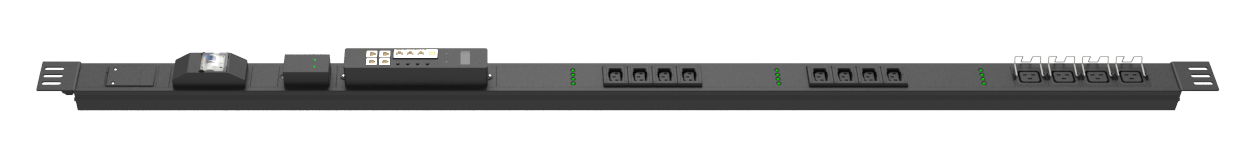

ZGIP-02 Intelligent Power Distribution Unit (PDU)

Product code :

The Power Distribution Unit (PDU), due to its industrial-grade power distribution process design, delivers high levels of safety and reliability. Common and intelligent PDUs are widely used based on the importance of equipment distribution and power energy management in various data room systems.

Price: Contact Us

Counseling support: +84-979933470

ZGIP-02 Intelligent Power Distribution Unit (PDU)

Overview
The Power Distribution Unit (PDU), due to its industrial-grade power distribution process design, delivers high levels of safety and reliability. Common and intelligent PDUs are widely used based on the importance of equipment distribution and power energy management in various data room systems.
The Zhongguang ZGP series PDU is mainly used for AC and DC power distribution of system equipment in the cabinet of the equipment room. According to the power distribution power of the system equipment and the power distribution interface, the corresponding input and output interfaces are configured, and the corresponding security protection mechanism is set. Intelligent distribution management required for distribution systems. In the actual system application, the corresponding installation mode of different engineering interface settings (1U or multi-U horizontal 19-inch installation and 0U vertical installation of different heights) is also considered.
This product is a hot-swappable, replaceable multi-function smart PDU developed by China Light. The intelligent module in the product integrates technologies such as network communication, monitoring and detection, power distribution and remote switch, and can monitor, control and manage the micro-environment status such as ambient temperature, humidity, access control, smoke and flooding in real time

Technical indicators

model	ZGIP-02
Number of input channels	Single input
Rated input voltage	250V AC
Input power frequency	50Hz
Input Current	16A
Number of output units	C13/8 C19/4
Output socket system	C13 C19
Dimensions	1817.5 mm62 mm88.7 mm
Installation method	Horizontal installation
Input interface type	Side cable input power supply
Housing material	Aluminum profile metal casing
Panel color	Black
Socket module	Material: PC/ABS Flame retardant rating: meets UL94 V-0 rating
Environmental requirements	RoHS

Function list

Monitoring function	Total / unit load current, total / unit input voltage
	Total/unit load power monitoring
	Total energy usage monitoring
	Input frequency monitoring
	Overvoltage/undervoltage monitoring
	Monitoring of ambient temperature and humidity/smoke, access control, and flooding conditions
	Monitoring of reclosing switch status
	Surge protector status monitoring
Setting function	Set the upper and lower limits of the total load current
	Input voltage upper and lower limit settings
	Setting of upper and lower limits of ambient temperature and humidity
	HTTP web service settings
	Network parameter settings (IP/Gateway/Mask/DSN)
	Power-on time per output unit
Alarm function	System alarm	Total load current / voltage / leakage current / temperature and humidity exceed the limit value
		Surge protector alarm
	Alarm mode	Buzzer buzzer, alarm indicator flashes
		WEB displays alarm information
Control function	On/off control of each output unit
	Reclosing switch control
Centralized monitoring function	Centralized monitoring, control and management through the host computer
Interview method	WEB access control through IP address
Query function	Related monitoring and alarm history data query
