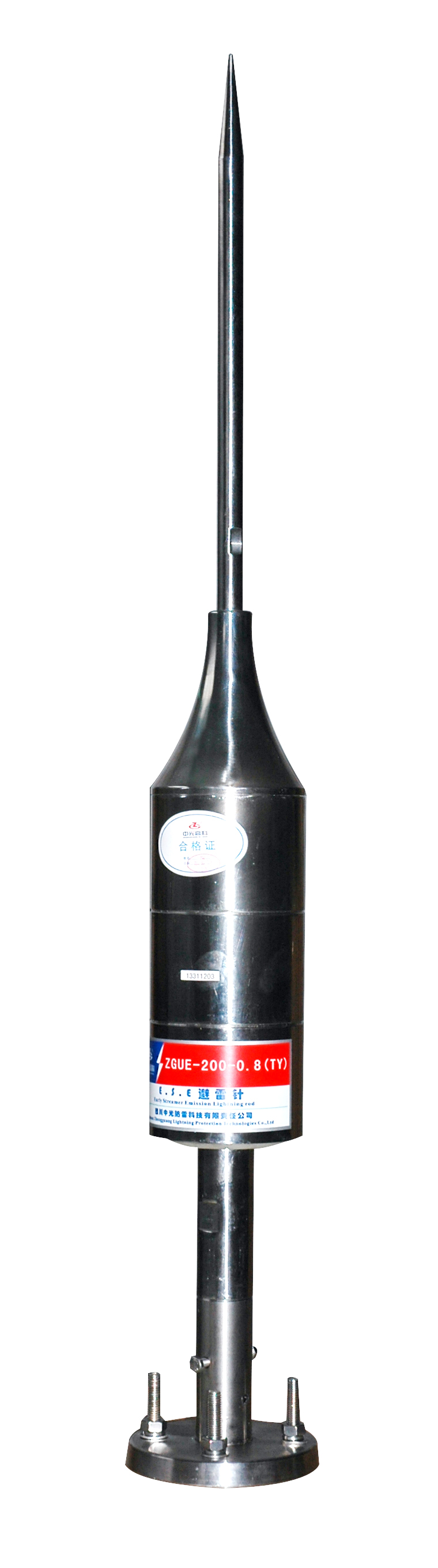

ZGUE-200-0.8 E.S.E lightning rod

Product code :

Price: Contact Us

Overview

The standard for ZGUE-200-0.8 E.S.E lightning rod reference is NFC 17-102, Q/20184261-8.2-2006.
The series of lightning rods are composed of an atmospheric power capacitor unit, a high voltage pulse transmitting unit, and a current discharging unit. Under the same installation height, it is several times larger than the protection radius of the ordinary instantaneous lightning rod, and it can be preferentially led to the ground.
This series of lightning rods has passed the test of Beijing Lightning Protection Device Testing Center. For example: ZGUE-200-0.8 type E.S.E lightning rod is tested according to the French NFC 17-102 standard. Its pre-discharge time is △T=66μs, which is larger than the 60μs specified by the French NFC17-102 standard. It has good cost performance.
The series of lightning rods are protected by multiple layers of materials that are insulated from harsh environments and watertight. There is no danger of aging and maintenance-free.

Technical indicators

Type	Max. discharge current I_max (8/20μs) (kA)	Early discharge time ΔT (μs)	Wind strength (m/s)	Height (m)	Weight (Kg)	Protected object
ZGUE-200-0.8	200	≥60	40	0.8	6.5	Buildings, structures, etc., are especially suitable for occasions where the height of the erection is limited (the clearance area, etc.)
