Immediate Understanding of the detail structure of a BTS Station in 5 minutes(p1)

BTS is a Telecoms Infrastructure which is used to provide wireless communications between devices of telecommunications subscribers and network operators. The subscriber equipment may be mobile phone, wireless internet device while the network operator might be GSM, CDMA mobile network or a TDMA base system.

A typical BTS includes: A Base Transceiver (TRX) in order to handle transmission and signals receiving, send and receive signals from higher network elements; a combination will combine RSS feeds from a number of base stations to be sent through a single antenna thereby reducing the number of antennas which need to be installed; a power amplifier helps to amplify the signal from the base station to transmit information via the antenna; a duplexer is used to separate the sending and receiving signals from the antennas or from an antenna which is partially outside of the BTS.

See more details of necessary Telecom Materials for a BTS Station here

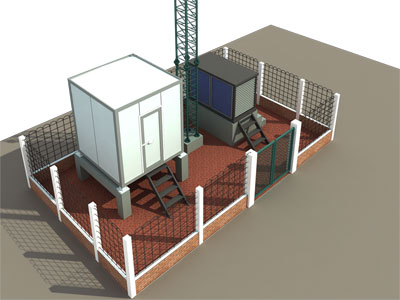

BTS Devices are often placed in a shelter to protect the telecommunications equipment away from external factors such as dust, corrosion, rust, theft, ...

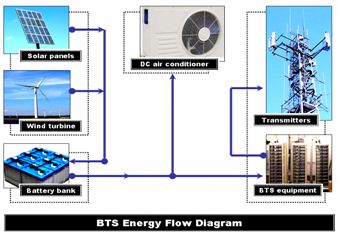

A station consists of BTS equipment as mentioned above, an air conditioner is used for cooling the space in the station due to the heat generated from the devices, a battery to provide power and security light for the devices.

The temperature of the Telecom Station in uptime exceeds 55 ° C is a good operating condition for BTS electronic devices. This requires the need of air conditioning, especially in tropical climates areas to maintain the temperature of the station remaining at 25 ° C in order to extend the life of BTS equipment and batteries.

Relative humidity is also a leading concern and it must be maintained at the level of below 60% to avoid the condensation of liquid on the device. In most cases, the air conditioning is often done both 2 functions as a cooling and dehumidifying which aims to maintain acceptable humidity.
