DISCOVERING ABOUT DETAILED STRUCTURE OF SQUARE POWER CABLES - ELECTRIC CABLES

The square power cables - the common electric cable products are used a lot in telecommunication and civil power projects, let’s discover the detailed structure and features of the square power cable together as below.

Electric cables – Square Power Cables: What are they?

They are a type of electric cable with multiple cores which are encased in a shell, used to transmit electrical energy. Square power cables are used a lot for installation of electrical wiring system in buildings, underground or overhead.

Square Power cables are a type which are flexible, heat-resistant, fire-resistant and non-halogen gas, environmentally stable and highly resistant to noise. These products are used in Industrial, Communication and Civil systems.

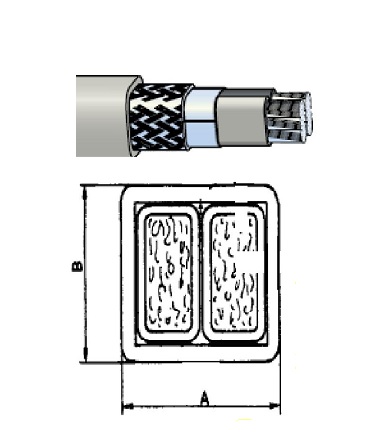

Structure of square power cables

Square power cables include many types and different sizes to suit the utility. Structure of square power cables consists of three main components: electrical conductor, 1 insulation layer and 1 insulation cover to protect the outside insulation cover.

Square power cables - Kingsignal power cables - Products meet strict standards of RoHS / REACH

Products KingSinal's square power cables are distributed in Vietnam by T.A.T International company with many types of square source cables with different sizes such as 2x4mm2, 2x6mm2, 2x10mm2 ..., or according to customers' order requirements.

Specifications:

- Conductor: Tin annealed Copper Wire, 03 parallel layers / 01 pole

- Insulation layer: LSZH

- Outer layer: Tin-plated Copper Mesh + Aluminum Foil

- Outer shell: LSZH

Electric characteristics:

- Conductor resistance (Ohms / Km): ≤ 8.21

- Reliability of Insulation layer (AC Kv / 01 min): ≥ 2.0

- Impedance of Insulation layer (GΩ.m): ≥2.0

- Inductance (HH / m): ≤ 0.45

Environmental Characteristics:

- Temperature: -20 ～＋ 90
